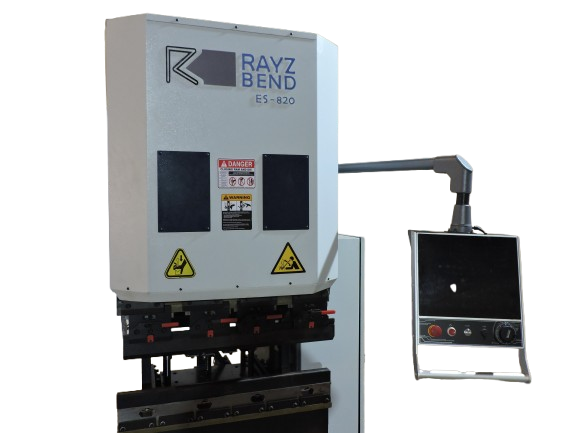

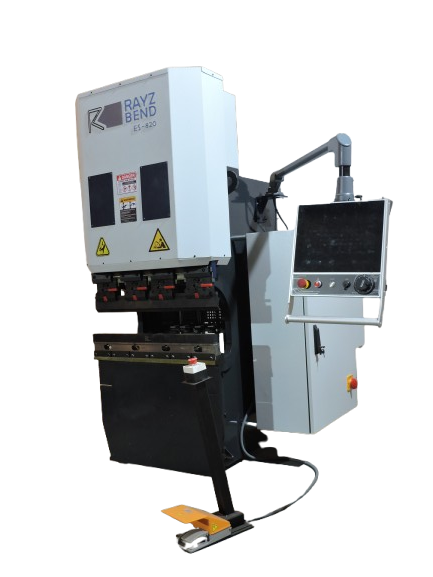

Fully Electro Servo Press Break 820
| Specification | Value |
|---|---|
| Bending Total Length | 835 mm |
| Axis of Machines | 4 Axis - X, Y1, Y2, R |
| Height | 2070 mm (+25 mm) |
| Width | 1080 mm (+20mm) |
| Length | 1050 mm |
| Opening Height | 320 mm |
| Throat | 275 mm |
| Work Table Length | 840 mm |
| Work Table Height | 715 mm |
| Stroke | 150 mm |
| Approach Speed (Y Axis) | 120 mm/Sec |
| Return Speed (Y Axis) | 120 mm/Sec |
| Bending Speed | 0.2 to 10 mm/Sec |
| Bending Capacity | 20 tons |
| Accuracy (Y Axis) | 0.01 mm |
| Accuracy (X Axis) | 0.02 mm |
| Accuracy (R Axis) | 0.01 mm |
| Back Gauge Stroke | 430 mm |
| Connected Electrical Load | 12 KW |
| Total Weight of Machine | 1500 KG |
| Moving Speed (X Axis) | 300 mm/Sec |
| Moving Speed (R Axis) | 100 mm/Sec |
| Moving Speed (Y Axis) | 72 mm/Sec |
| Controller | (Rayz Bend) |
| Max Bending Capacity | 3.2 mm x 835mm |
