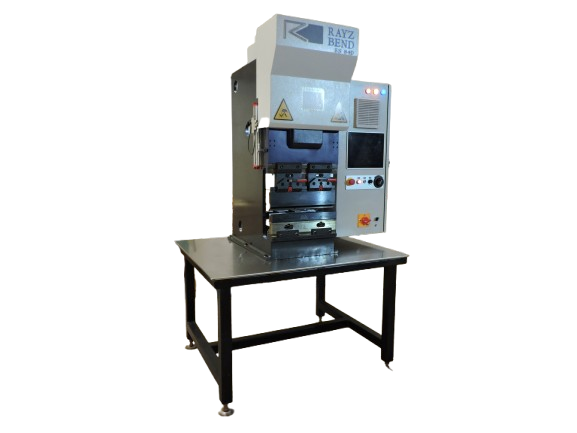

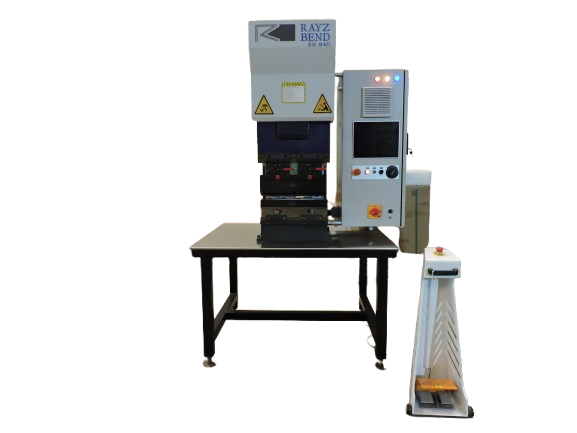

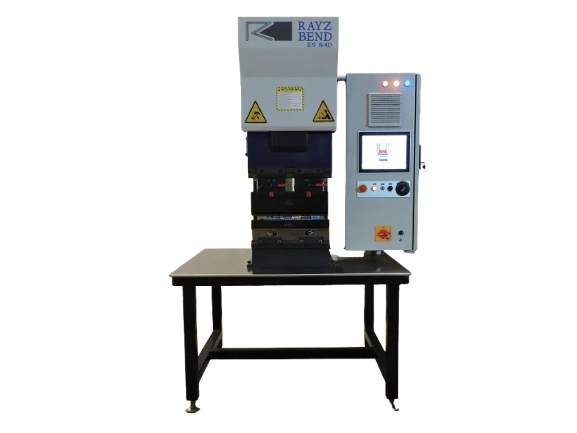

Fully Electric Servo Press Brake ES84D
| Specification | Value |
|---|---|
| Bending Total Length | 420 mm |
| Axis of Machines | X, Y |
| Height | 1100 mm |
| Width | 650 mm |
| Length | 600 mm |
| Opening Height | 350 mm |
| Throat | 150 mm |
| Work Table Length | |
| Work Table Height | 900 mm |
| Stroke | 100 mm |
| Approach Speed (Y Axis) | 100 mm/s |
| Return Speed (Y Axis) | 100 mm/s |
| Bending Speed | 0.2-15 mm/s |
| Bending Capacity | 8 tons |
| Accuracy (Y Axis) | ±0.01 mm |
| Accuracy (X Axis) | ±0.01 mm |
| Accuracy (R Axis) | |
| Back Gauge Stroke | 100 mm |
| Connected Electrical Load | 5 KW |
| Total Weight of Machine | 800 kg approx |
| Moving Speed (X Axis) | 200 mm/s |
| Moving Speed (R Axis) | |
| Moving Speed (Y Axis) | 100 mm/s |
| Controller | Rayz Bend |
| Max Bending Capacity | 2 mm x 400 mm |
